Cell Tower Gaussian Digital Twin
Inspections & Digital Twins · Interactive inspection twin · Point cloud · 2026
~37 MB · drag to orbit, scroll to zoom

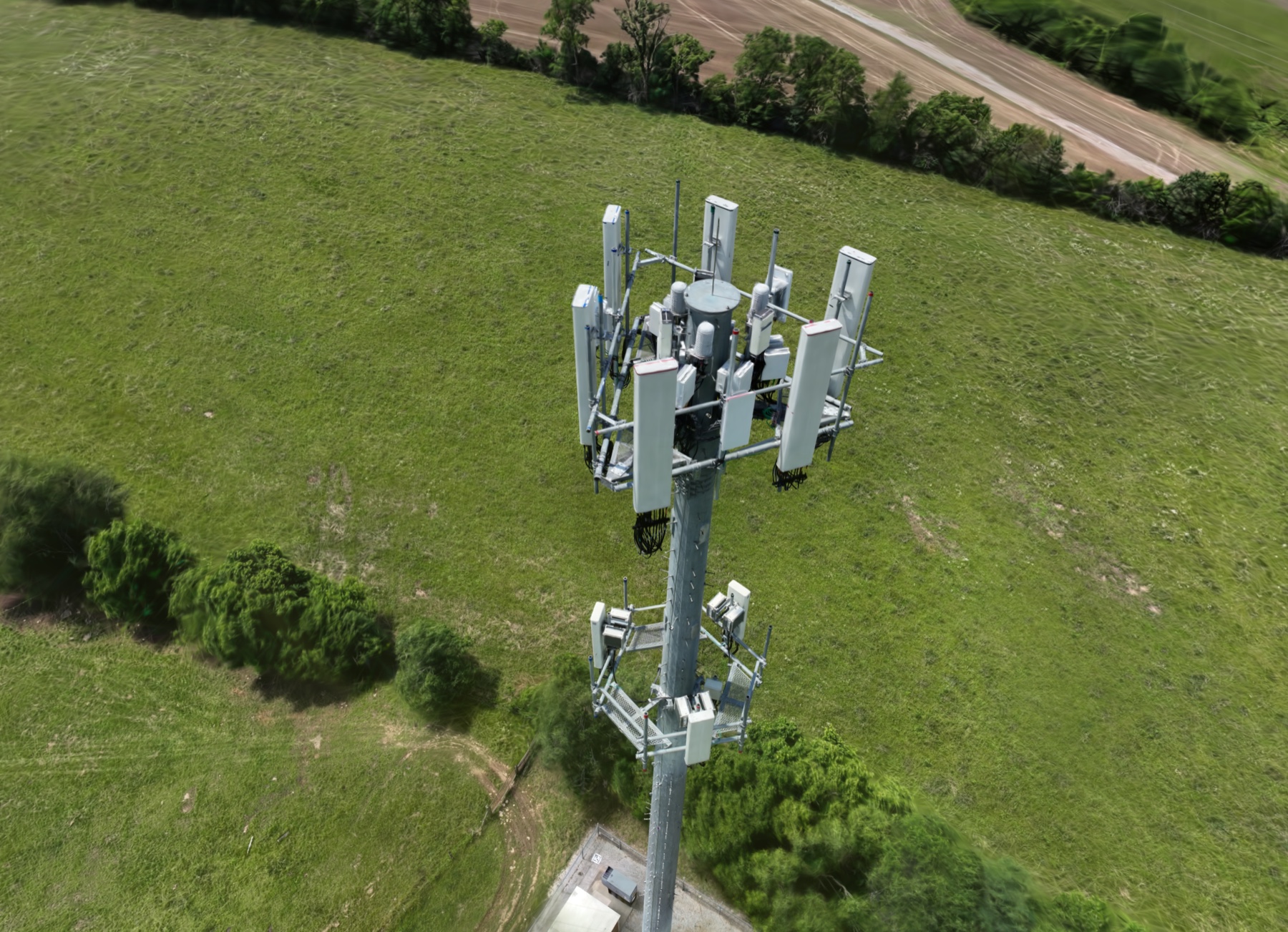

Photorealistic Gaussian splat
24 seconds, rendered from the trained Gaussian model. The interactive twin is ~7.5 MB in the browser — drag to orbit, scroll to zoom, no app required. Not survey-certified measurement.

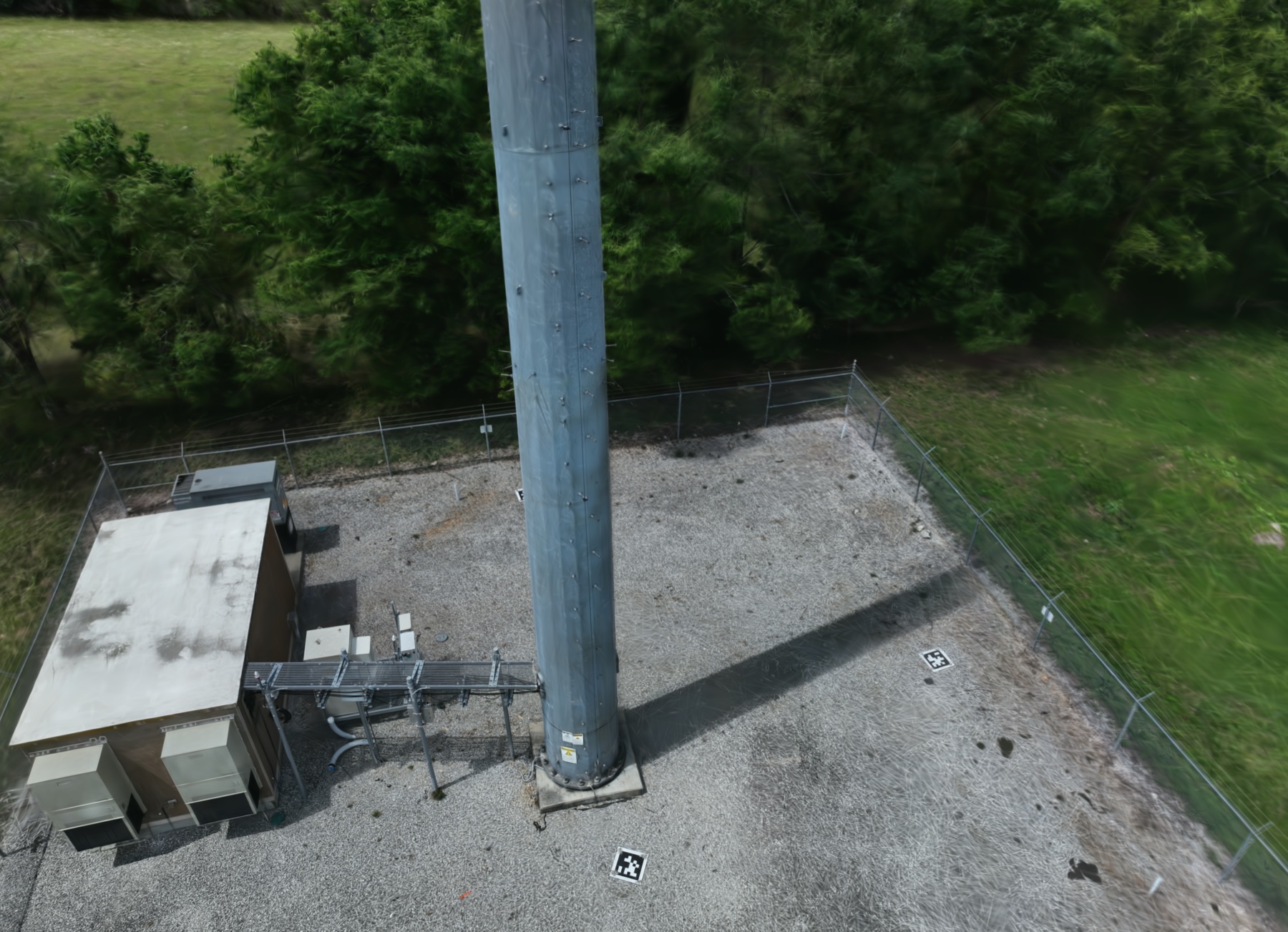

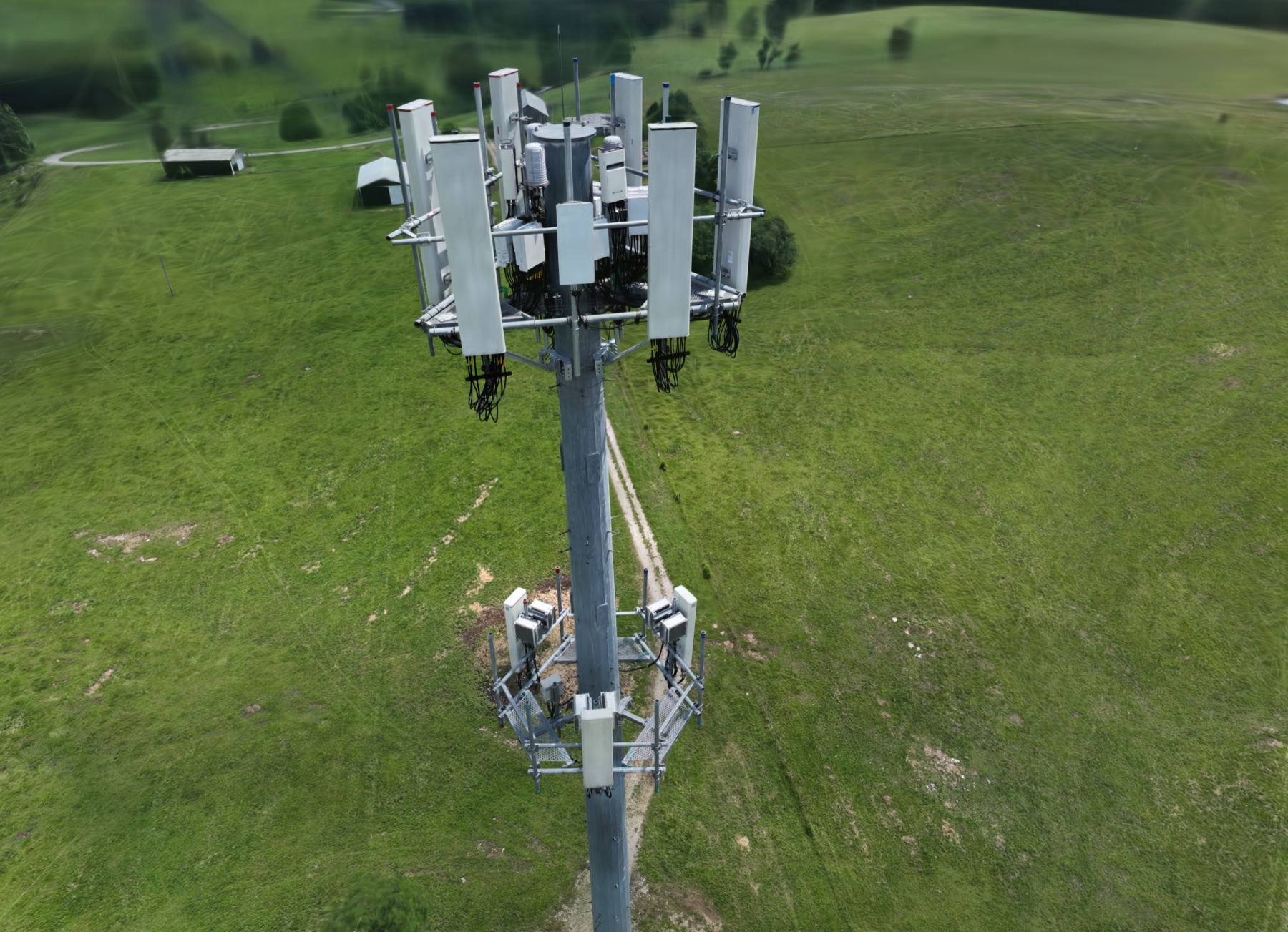

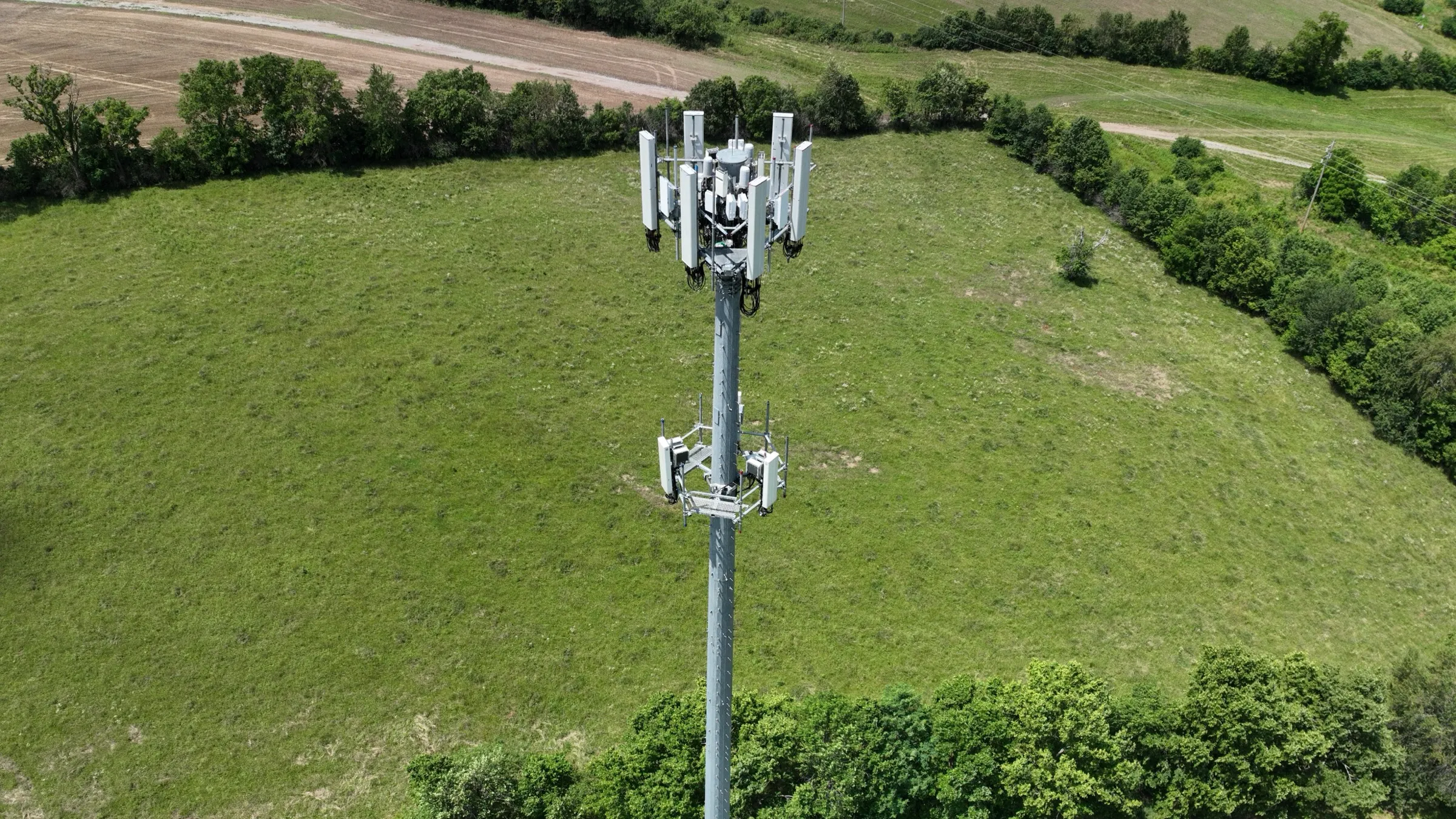

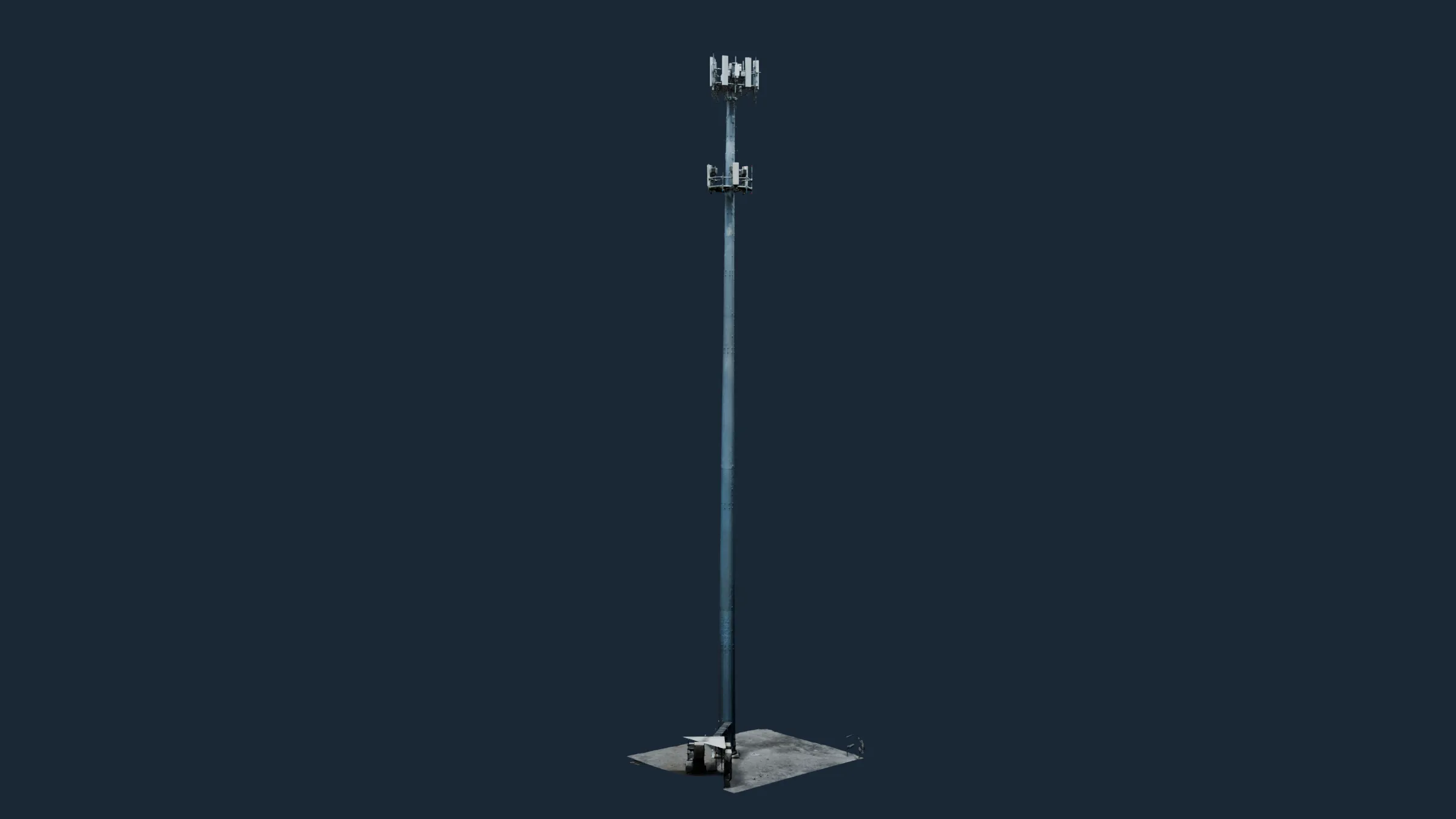

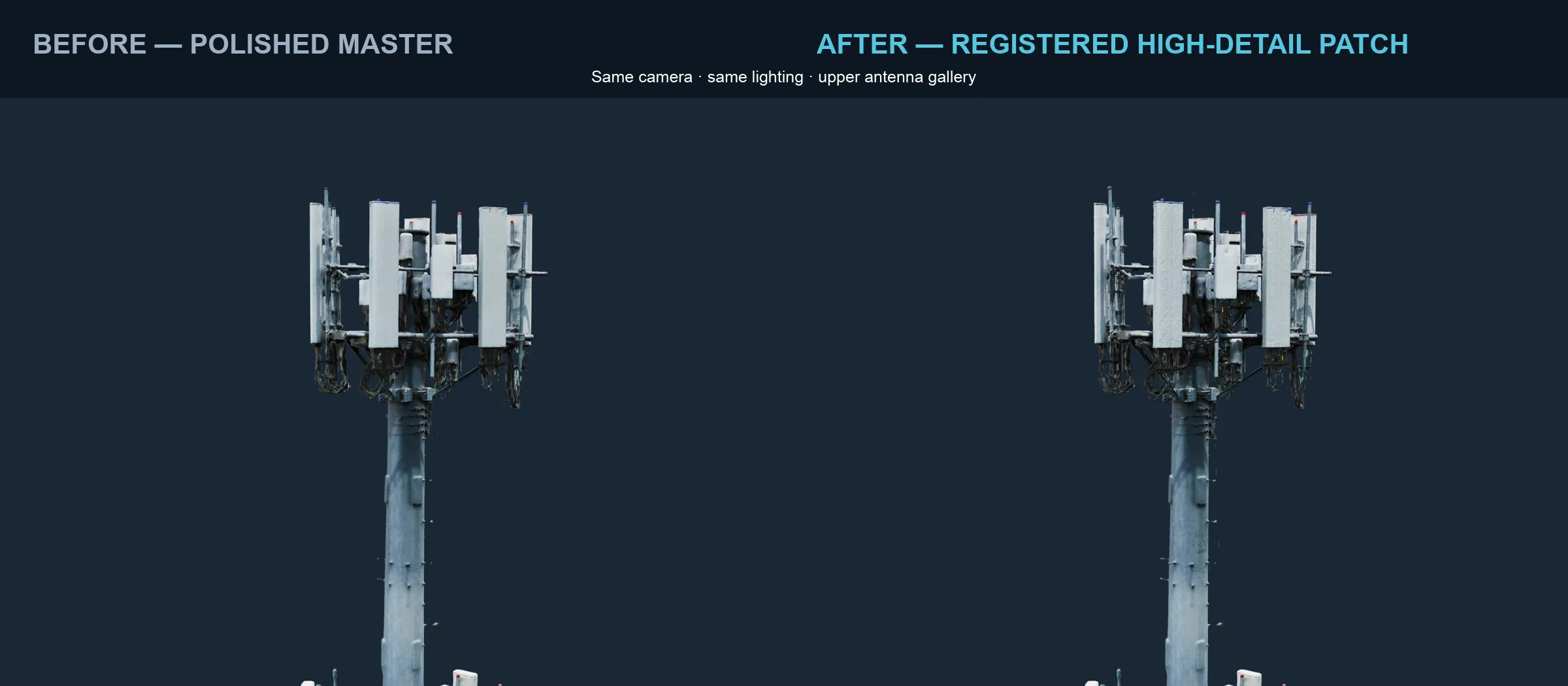

A photorealistic, navigable reconstruction of an operating telecom monopole — built directly from a systematic drone inspection capture. This is not a stock 3D model or an artist's approximation: every visible antenna face, mount, cable loop, platform, and section of the compound comes from calibrated imagery of the real tower. Metashape solved 719 camera positions and an 83,473-point alignment cloud from the capture; those calibrated views then trained the Gaussian model at up to 3072-pixel resolution over 30,000 optimization steps. The point cloud proves the alignment — the Gaussian twin shows the asset. The interactive viewer is a cleaned, compressed publishing derivative; the full 1.67-million-Gaussian master remains the archival source. Presented for visual inspection, stakeholder review, and planning — not survey-certified measurement.
